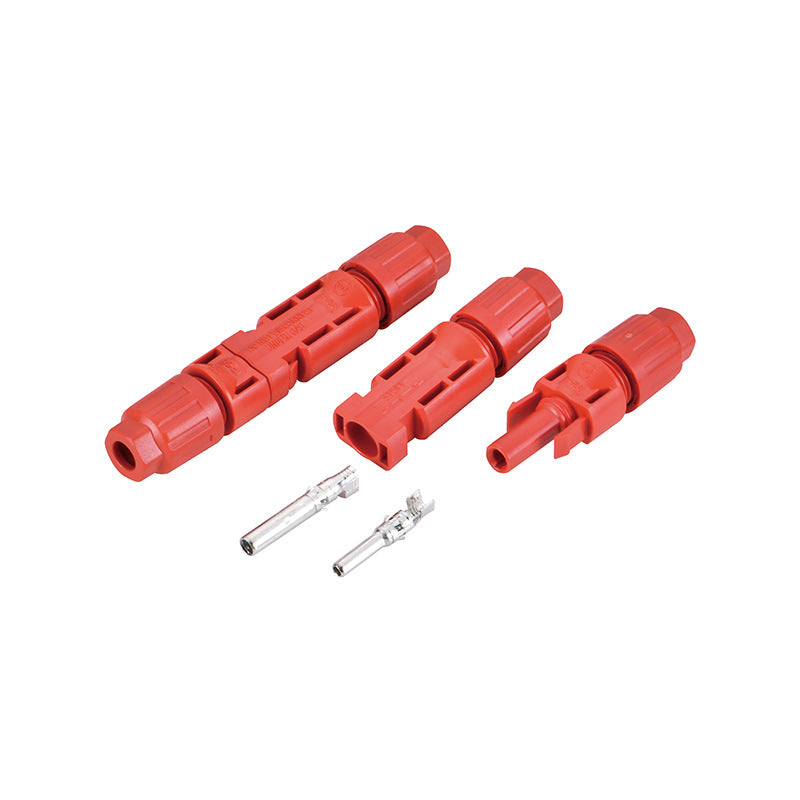

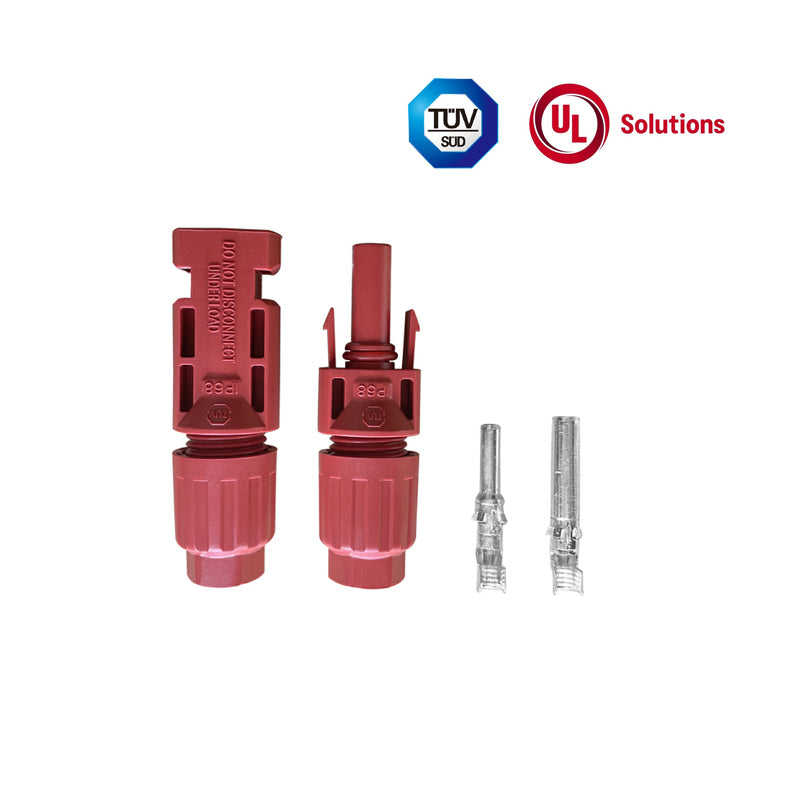

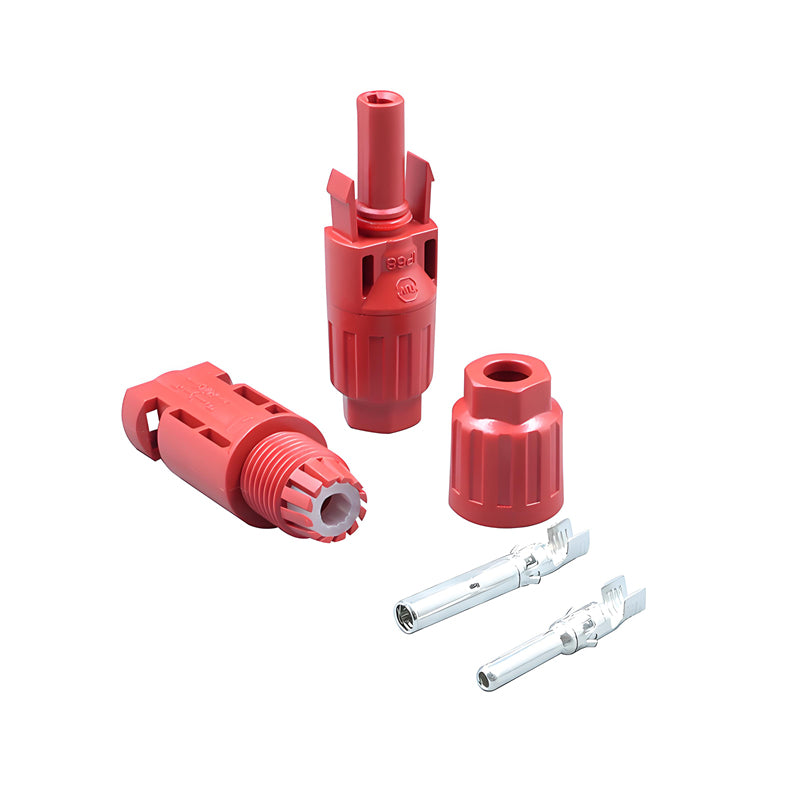

100 Pairs 1000V 30A Male+Female Solar Cable Connectors for 10AWG-12AWG 2.5mm²-6mm² TUV UL IP68 Red

100 Pairs 1000V 30A Male+Female Solar Cable connectors for 10AWG-12AWG  2.5mm²-6mm² TUV UL IP68 IP68  Red

Model : CEMH-MC10RED

100 Male connectors+100 Female connectors +100 Pins

Target market: Worldwide

Specification:

-Rated Current: 30A

-Rated voltage: 1000VDC

-Suitable cable: 2.5mm2, 4mm2, 6mm2(AWG14, AWG12, AWG10)

-Contact resistance: ≤0.2mmΩ

-Waterproof degree：IP67

-Flame class: UL94-VO

-Safety Class: Ⅱ

-Withdrawal force: ≥50N

-Pin dimension: 4.0mm dia.

-Insertion force: ≤50N

-Insulation material: PPO+PA

-Connecting system: crimping connection

-Contact material: copper, tin plated

-Temperature range: -40 ℃ ~ +90 ℃
